Draft King®

Single Flue Copper Chimney Caps


Draft King® Single Flue Copper Chimney Caps combine the decorative elegance of pure copper with the rugged, durable construction and functionality of a steel cap. These caps are designed to fit some of the most common masonry flue tile dimensions found on chimneys across the country.

Bringing the Best Home to You Since 1947.™

Draft King®

Product Description

These caps feature a 16-gauge copper-plated stainless steel base, 18-gauge ¾” expanded 100% copper mesh, and a 24-gauge 100% copper hood. The copper construction naturally oxidizes, developing an attractive patina over its lifespan. The caps are installed with slotted hex-head stainless steel mounting bolts via corner-mounting attachment points that provide the most secure fit possible on a masonry flue. Each cap is manufactured in the USA.

Product Guide

Made in the USA

Draft King® Single Flue Copper Chimney Caps are made in the United States by skilled laborers.

Removable Hood

Allows easy access to flue for chimney sweeps or DIY chimney cleaning.

Compatible with Stainless Steel Leg Kit

Use to install cap on flue tile that doesn’t protrude out far enough from chimney crown.

  • Product Features
  • Retail Specs
  • Shipping Specs
  • Installation Instructions
  • Venting Safety
Draft King® Single Flue Copper Chimney Caps
  • 16-Gauge Copper-Plated Stainless Steel Base
  • 18-Gauge ¾” Expanded 100% Copper Mesh
  • Expanded Metal Mesh Turns Inward 90° at Base and Rests on Flue Tile to Close Gaps
  • 24-Gauge 100% Copper Hood
  • Hood Made with Scalloped Corners and Roll-Formed Edges to Facilitate Water Runoff
  • Hood Is Removable for Easy Access for Chimney Sweeps or DIY Chimney Cleaning
  • Installs with Slotted Hex-Head Stainless Steel Mounting Bolts
  • Outside Mounting Provides Greater Free Air Space for Better Chimney Draft
  • Compatible with Heavy-Duty Stainless Steel Leg Kit (for Chimneys with Flue Tile Extending Less Than 1” Above Crown)
  • Arrests Sparks and Reduces Certain Downdrafts
  • Provides a Clean, Professional Wildlife Exclusion Solution
  • Made in the USA


Copper chimney caps can be used in situations where oil or coal is burned or when wood or wood pellets are used as the home’s primary source of heat (e.g., a wood furnace chimney or pellet stove chimney).

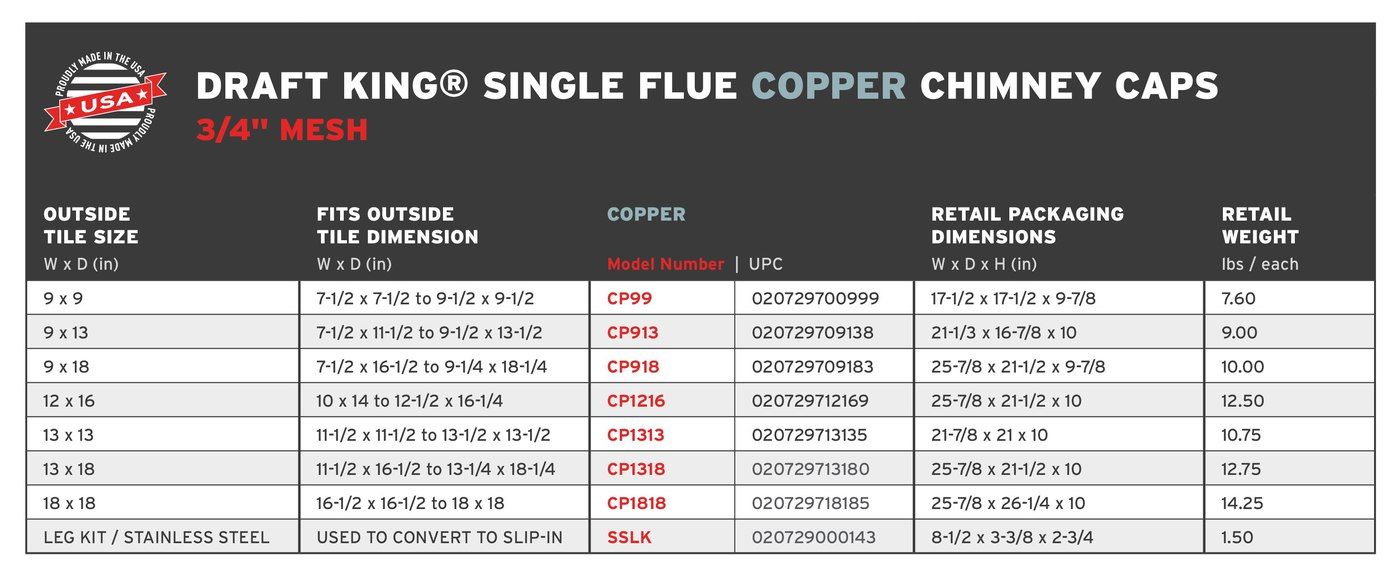

Draft King® Single Flue Copper Chimney Caps DraftKing.SquareCopper.3-4Mesh.SingleFlue.RetailChart_2.24

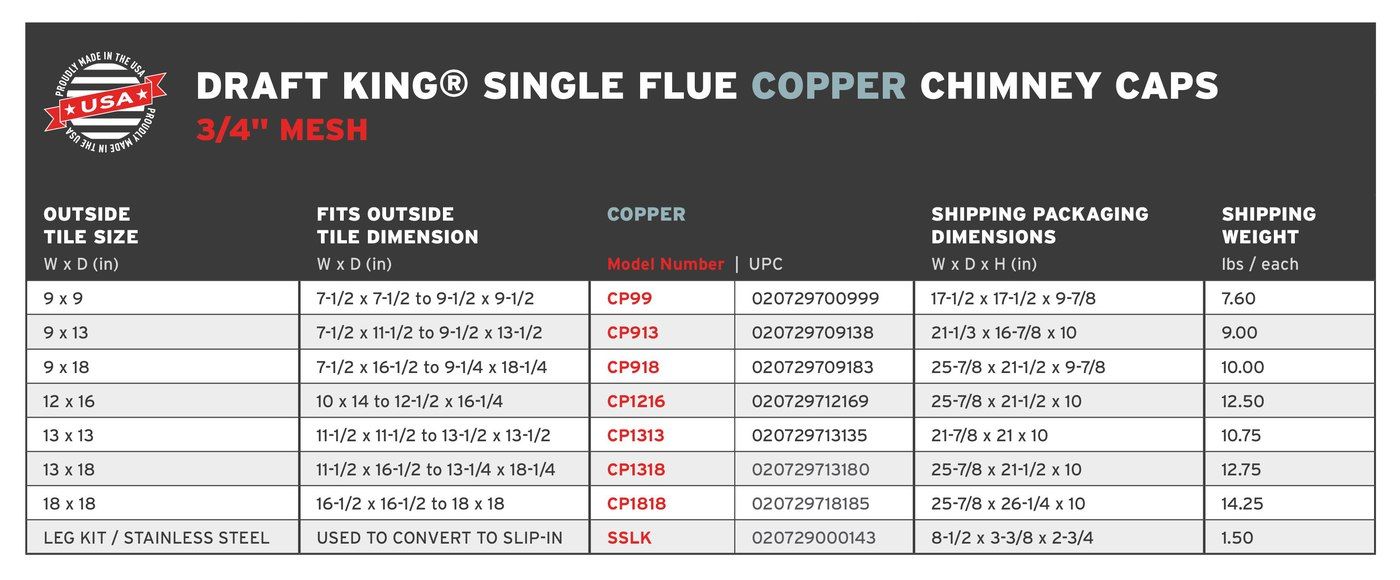

Draft King® Single Flue Copper Chimney Caps DraftKing.SquareCopper.3-4Mesh.SingleFlue.ShippingChart_2.24


Draft King® Single Flue Copper Chimney Caps
A HY-C COMPANY™ Warranty

Draft King®


Our Draft King® brand provides safe, secure, and durable products to Improve Your Life and the Life of Your Home™. Designed and manufactured as long-lasting Home Solutions Built Better™, our warranty applies to products installed properly and used in accordance with the intended use. We reserve the right to refuse warranty coverage based upon field modifications, improper installation, and/or improper use. Our warranty applies to the original purchaser of product and is non-transferable. All warranty claims must include a copy of the original invoice showing the date purchased, seller name, and model number. Warranty coverage commences on the date of purchase. Our liability under this warranty is limited to the replacement cost of the product purchased and does not cover any costs of shipping, labor, or consequential damages related to the performance of the product.
